Industry evaporative air coolers have the characteristics of integrated ventilation and cooling, energy saving and environmental protection, high efficiency and energy saving, and are good equipment for cooling in summer.

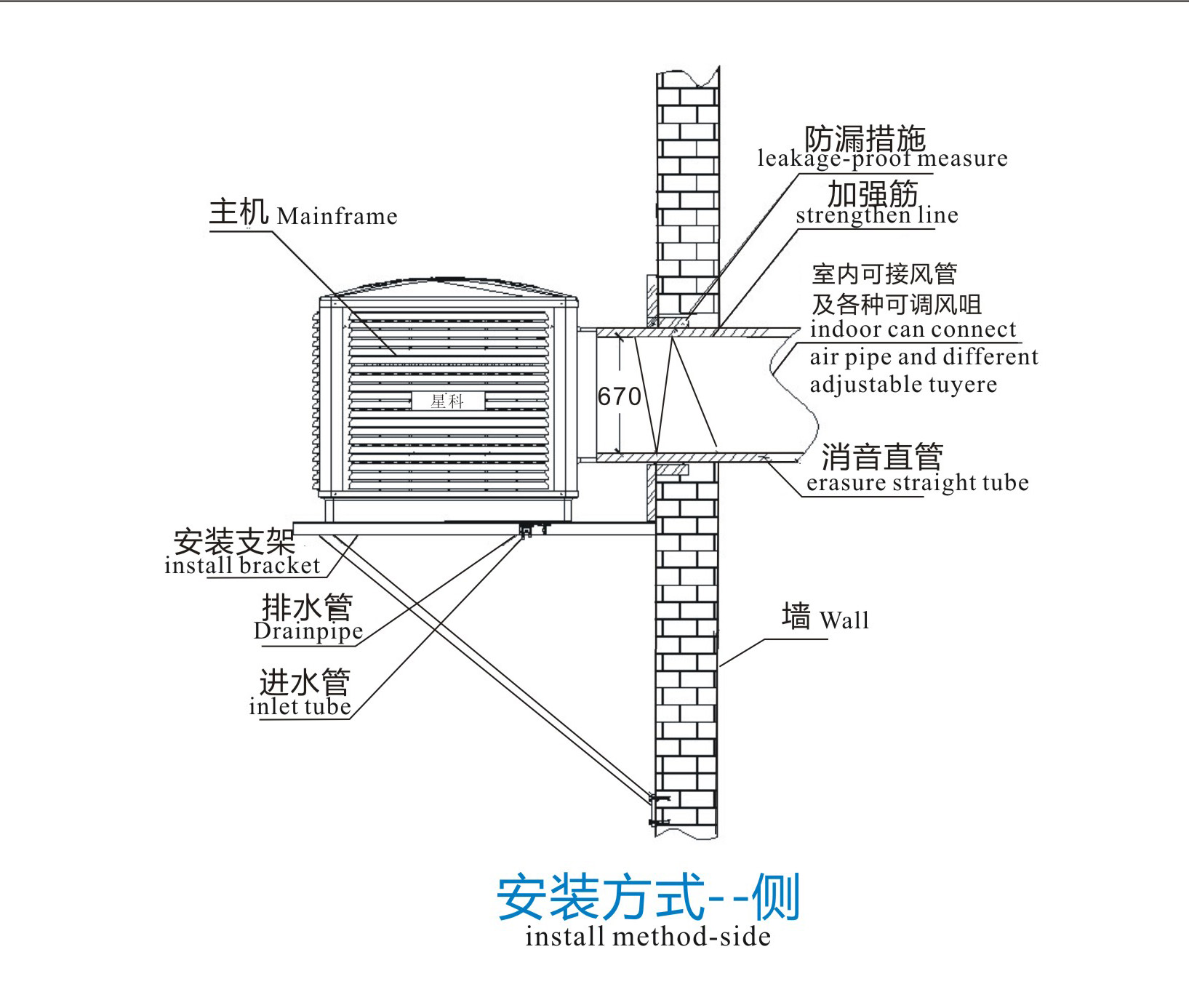

The installation method of industry evaporative air cooler:
1. Industry air cooler unit should be installed outdoors and run with fresh air. It should not be operated with return air. If conditions permit, it should be installed in a well-ventilated place. The cold air delivery location is best in the middle of the building. Shorten the installation pipeline.
2. The installation environment must have a smooth supply of fresh air. Do not allow the air cooler to work in a closed area. If there are not enough open doors or windows, install shutters. Its air displacement is 80% of that of an industry evaporative air cooler. % Of the air volume sent out.
3. The bracket of the industry evaporative air cooler shall be welded with a steel structure, and it shall be ensured that its structure can support the weight of the entire body and maintenance personnel.
4. When installing, pay attention to sealing and waterproofing the pipeline between indoor and outdoor to avoid rainwater leakage.
5. The power supply should be equipped with an air switch, and the power supply is directly supplied to the outdoor host.
6. For detailed installation methods, please refer to the installation information or provide professional installation advice.
Indoor installation method of industry evaporative air cooler:
The indoor air supply duct must match the model of the air cooler. According to the actual installation environment and the number of air outlets, design a suitable air supply duct. General requirements for air supply duct design:
1. The installation of the air outlet should achieve uniform air supply throughout the space.
2. The designed air duct must be designed to achieve the minimum wind resistance and noise.
3. Directional air supply to the work post should be installed according to actual requirements.
4. The radius of the pipe bend arc is generally not less than twice the pipe diameter.
5. Pipe branches should be minimized, and the branches should be well distributed effectively.
6. The air duct design should be as short as possible, and it is best to use direct air supply to avoid excessive bending.
