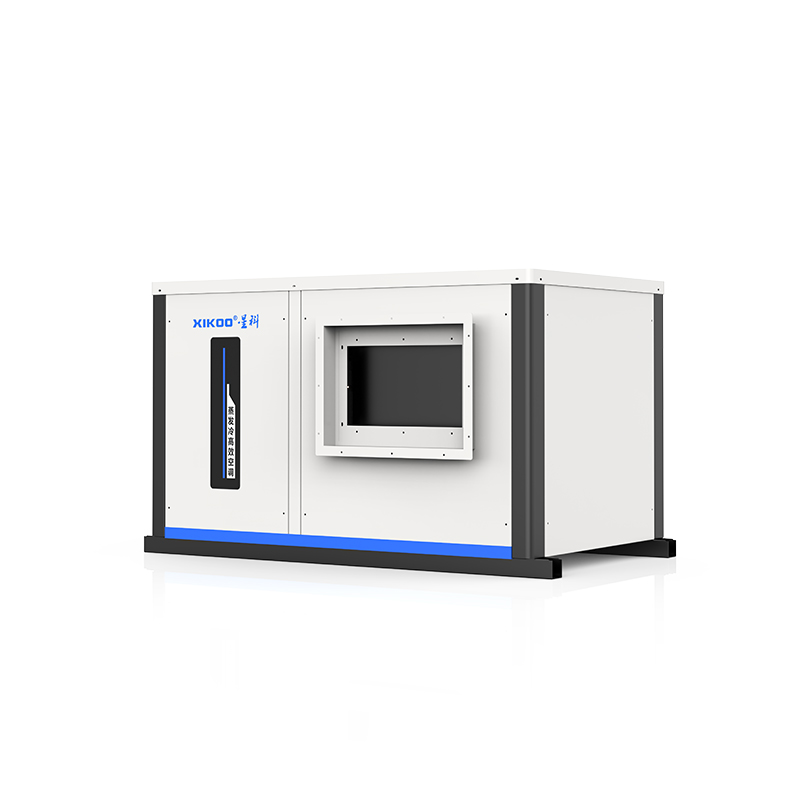

Ducting energy saving industiral air conditioner SYW-GD-21

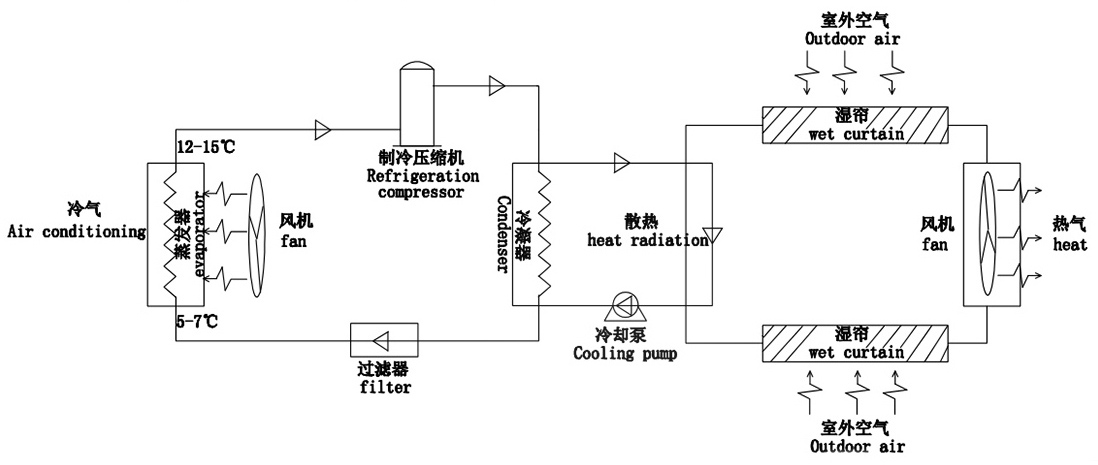

Principle
The circulating water that has cooled the high-temperature and high-pressure refrigerant is transported to outdoor unit by a water pump. At the same time, it flows through the evaporative cooling pad, thereby turning the high-temperature water into normal temperature water and flowing through the room again. The machine cools down the refrigerant under high temperature and high pressure, and continuously circulates the operation to maximize the energy efficiency ratio, thereby reducing energy consumption.
Evaporative power-saving air-conditioning unit is composed of compressor, condenser, expansion valve, evaporator, cooling pad and so on.
Specification
| Horizontal ducting air conditioner water cooled evaporative air conditioner | |||||
| Model | SYW-GD-21 | Tap water pipe diameter | DN20 | ||
| Rated Voltage | 380V~50Hz | Duct air delivery | 30M | ||
| Refrigerating capacity | 30 kW | Max. airflow(m3/h) | 6500 | ||
| Rated current | 10.5A | Allowed working pressure exhaust/suction | 2.8 MPa/1.5MPa | ||
| Rated power | 6kw | Allowed pressure of Max./Min | 2.8 MPa/1.5MPa | ||
| Maximum operating current | 14.5A | Noise | 65dB(A) | ||
| Maximum operating power | 8kw | Refrigerant type/dosage | R22/3500g | ||
| Rated cooler water Tem. returned/ out | 32℃/37℃ | Indoor unit size | 1115*962*730mm | ||
| Cool water flow(m3/h) | 5 | Outdoor unit size | 910*610*1250mm | ||
| Cool water pipe diameter | DN25 | Weight | 200kg | ||
Features
1.Energy-saving electricity-saving
Electricity consumption is 5kw/h to cool a 200 square meter space, it just is 1/4 energy consumption of traditional air conditioner. No need for external copper pipe, lower cost.
2. Bigger airflow and bring purified cool air. Cool the air down more quickly, and the cooling efficiency is higher.
3. longer cool air delivery and bigger area to cover
4 Cool the air fast, Decrease temperature quickly.
5. Widely application, one piece can cover 200M2, suitable for product exhibition halls, school canteens, restaurants, workshops and workshops, exhibitions, farm and other places.

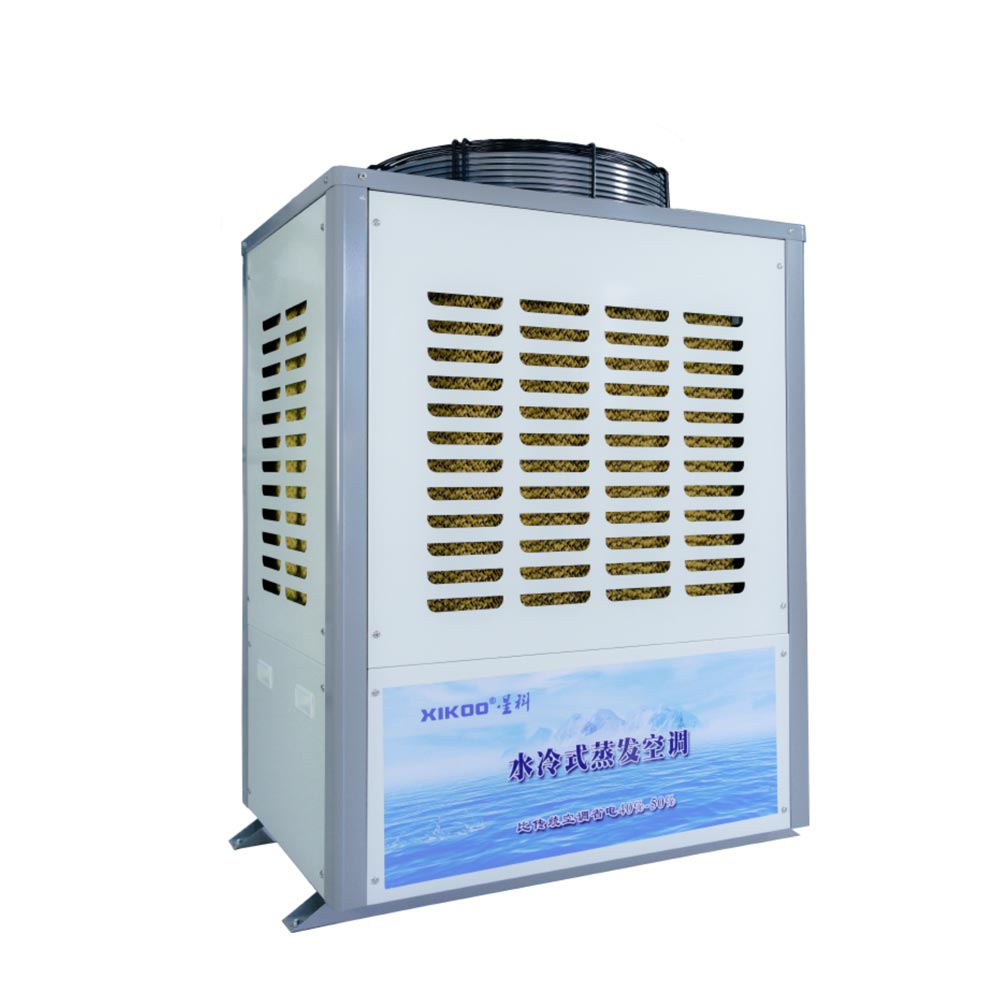

Main parts

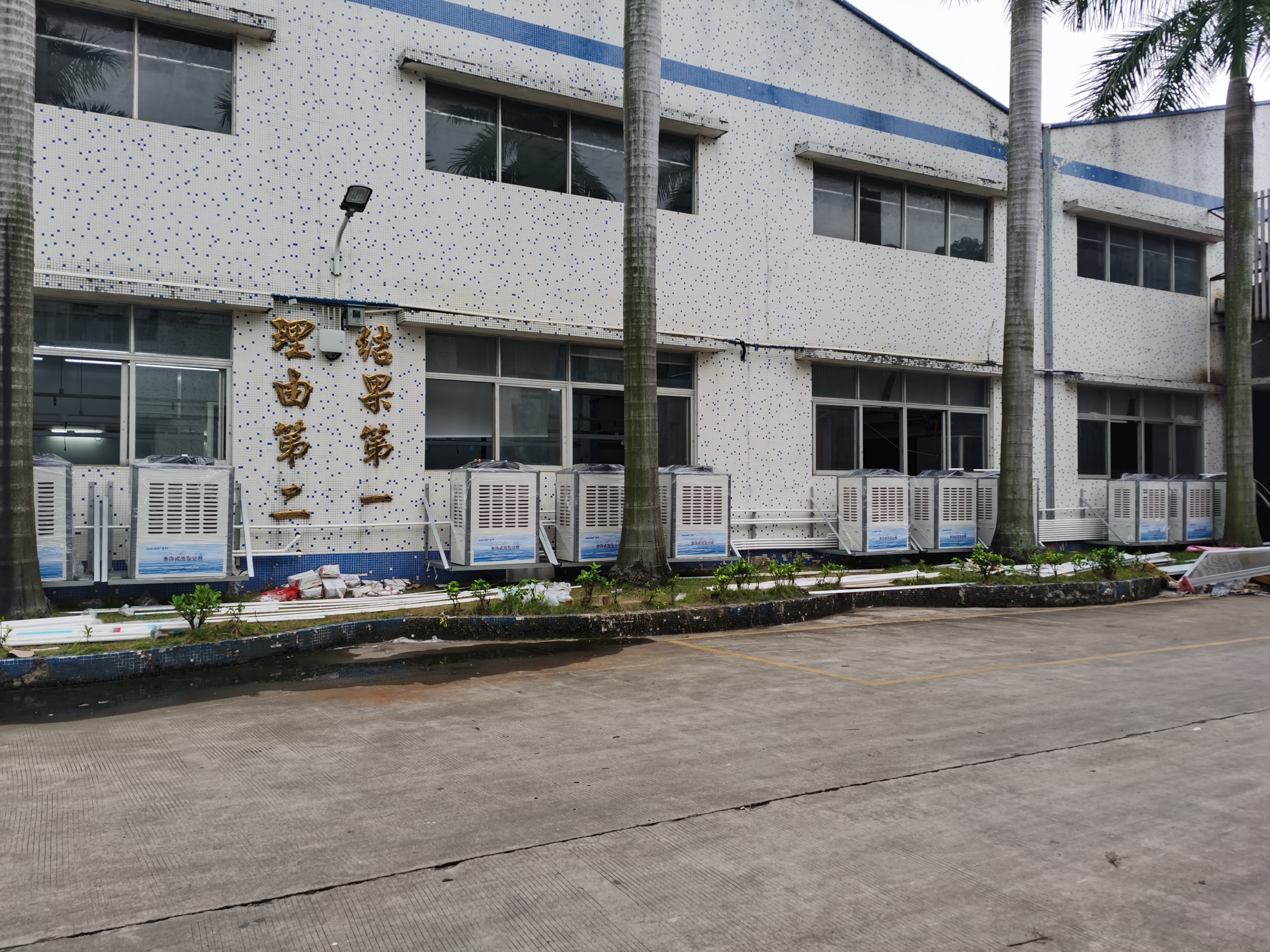

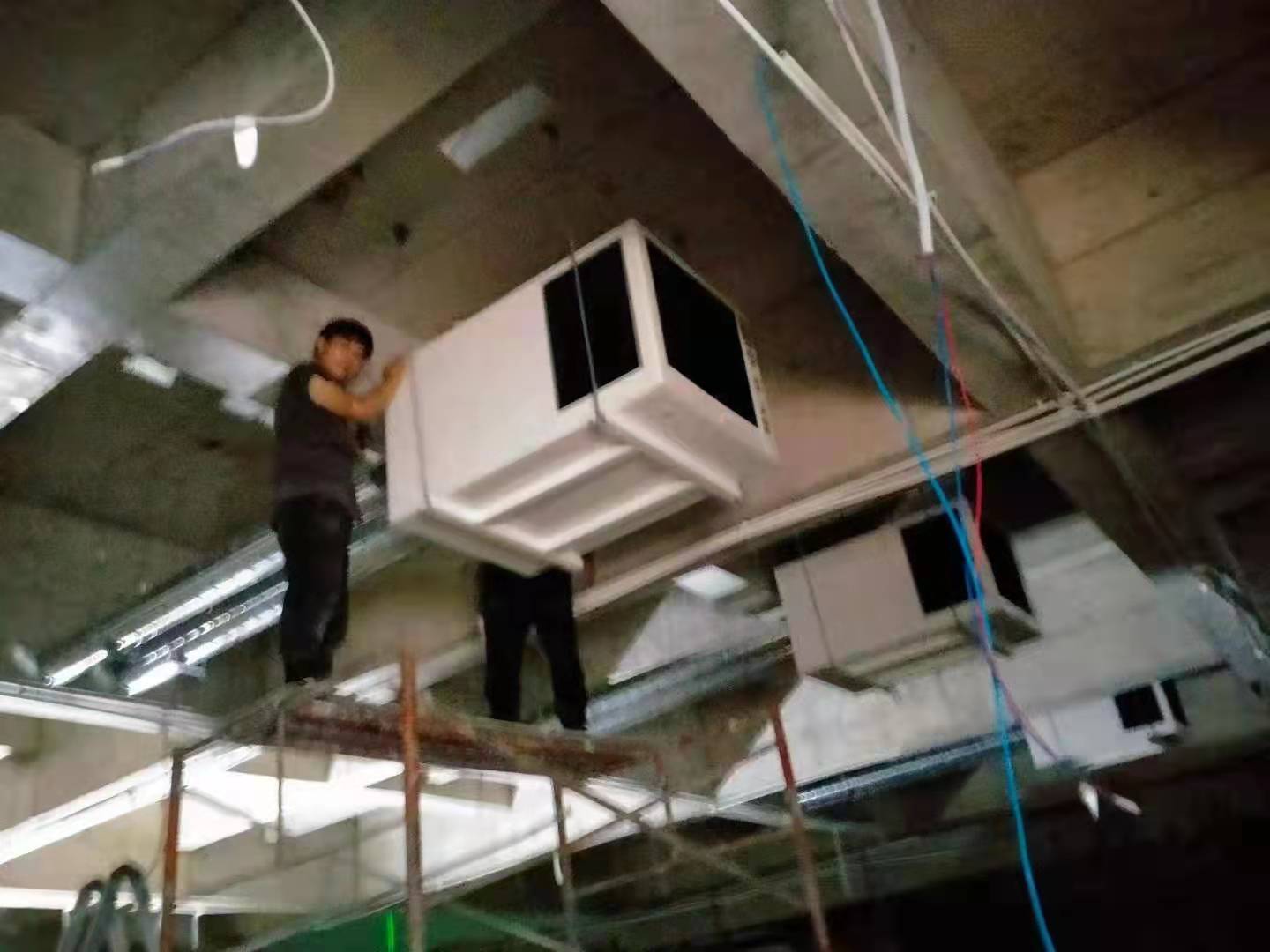

Application

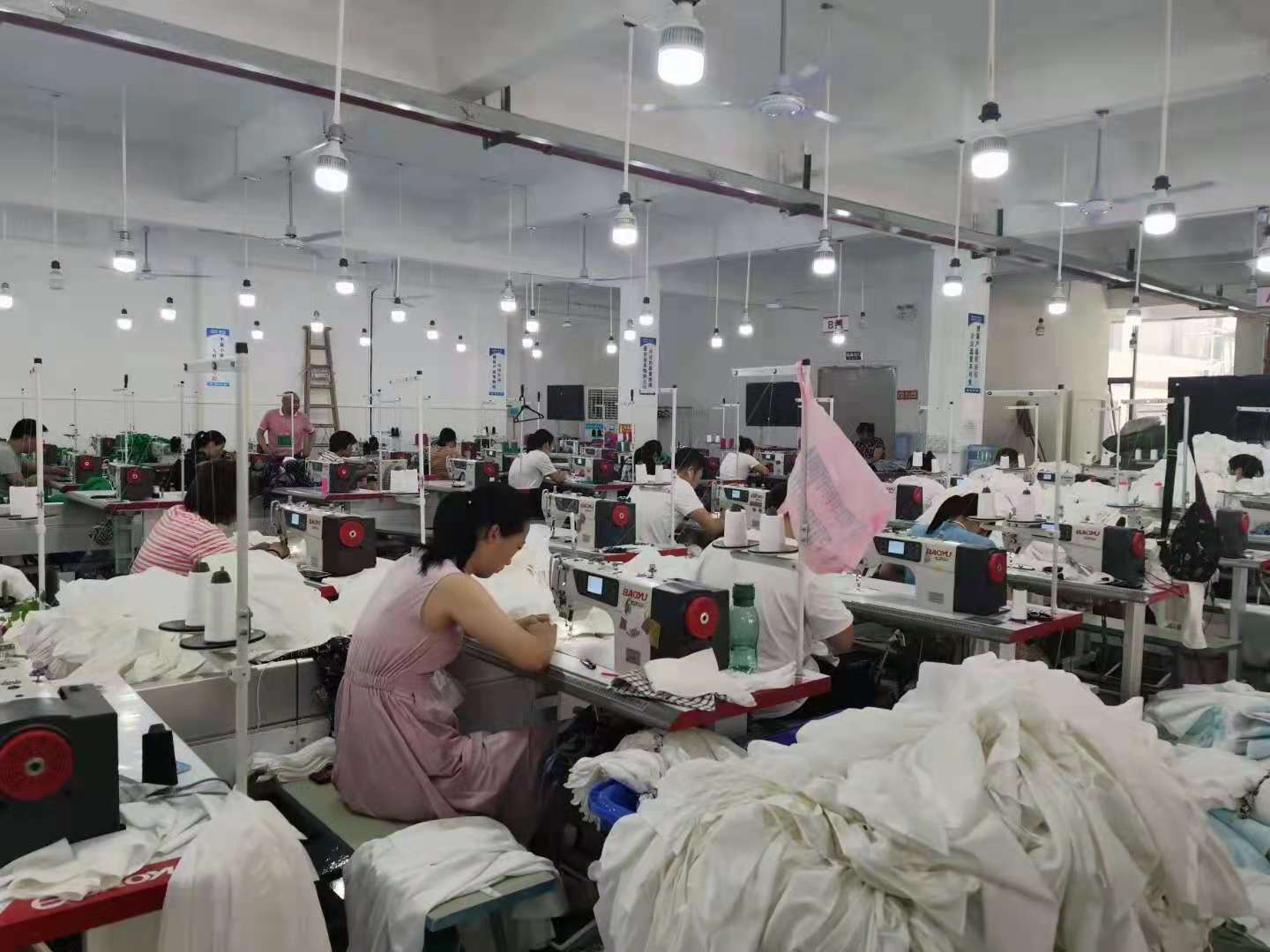

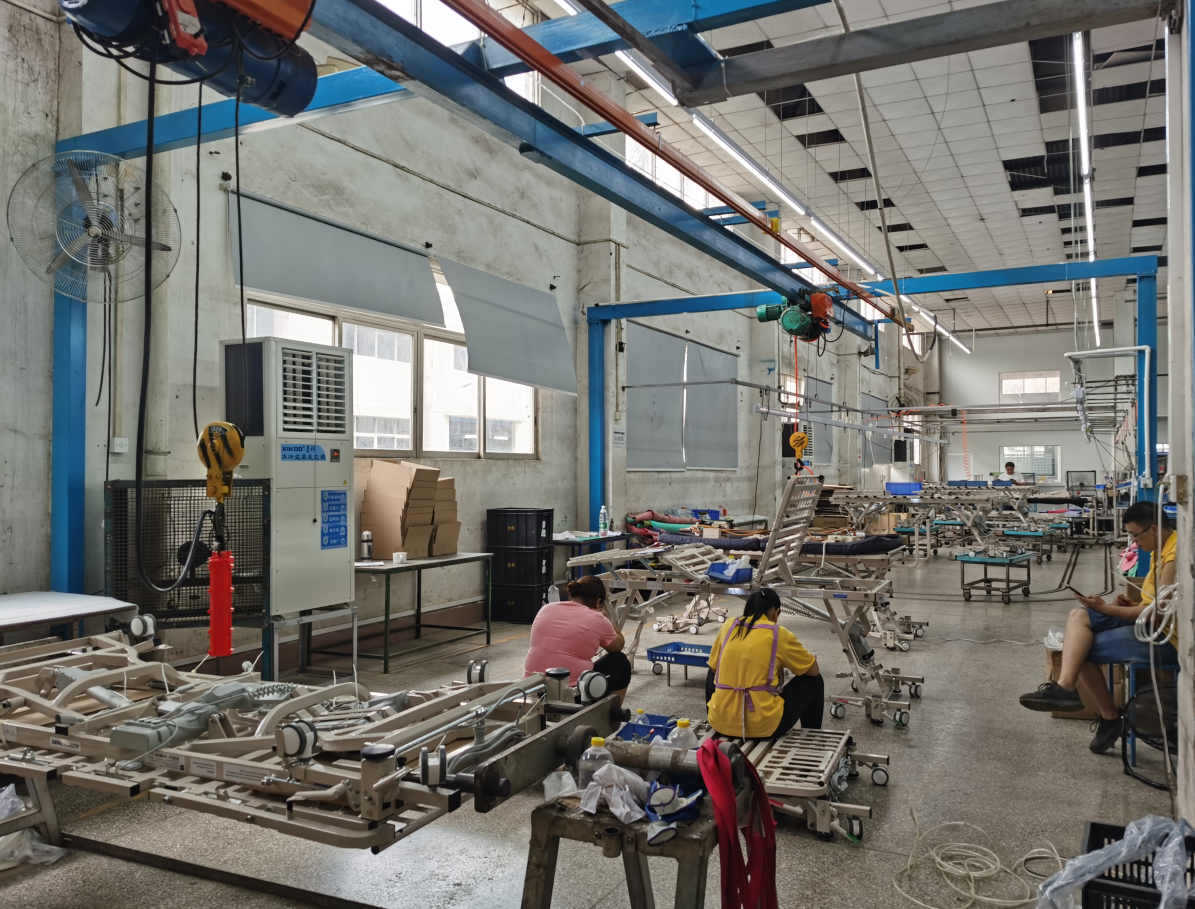

Workshop
